FZ Series Pharma Granulation Machine Single Speed Grinding Stirring 380V

Ask Lasest Price
Brand Name :	Xinda
Model Number :	FZ-1000
Certification :	ISO CE
Supply Ability :	10 Piece/Pieces per Month
Price :	Negotiable

Add to Cart

Product Details
Company Profile

FZ Series Pharma Granulation Machine Single Speed Grinding Stirring 380V

FZ Series Pharma Granulation Machine Single Speed Grinding Stirring 380V

Main application

Pharmacy: raw material grinding, wet process of granules, dry material granulation, For those tablets not in requirement,they can be recycled according to the size of particles.

Foodstuff: for the reuse of biscuits

Others: for the grinding and granulation of coarse materials, block materials and agglomerated materials

Working method

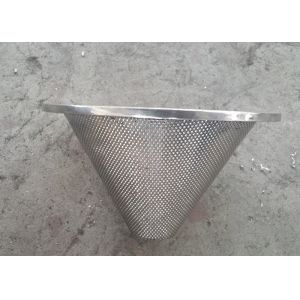

Raw materials entering the feeding gate will be will fall into cone-shaped working chamber and are sheared by rotary knives and mesh surface. The material is cut into small particles and released from the sieve. The granule size is decided by the distance of mesh size, rotary knives and sieve as well as the rotary knife speed.

Model	Model 150	Model 300	Model 450	Model 700	Model 1000
Capacity(kg/h)	15-150	30-300	45-450	70-700	100-1000
Size(mesh)	6-80	6-80	6-80	6-80	6-80
Transfer base temperature increase(℃)	< 30	< 30	< 30	< 30	< 30
Speed control range(rpm)	Single speed 2800; frequency conversion speed control 300－3600
Motor power(kw)	1.1	1.5	2.2	3	5.5
Height of discharge gate from floor(mm)	650	650	690	690	720
Overall size (L×W×H)(mm)	810×445 ×1345	810×445 ×1345	920×445 ×1430	1000×500 ×1530	1100×560 ×1785
